Inverto Ultra 5928 PLL LNB High Gain is the world’s No. 1 Ku Band LNB now in India
Ultra Single High-gain Low Noise 40mm PLL Lnb IDLT-SNL412-Ultra-Open
Item: 5928
5928 is superior to Ultra Black or the previous model.
Inverto’s high-performance Ultra LNBs were specifically designed to address the need for superior reception under the edges of the satellite footprint skirt, small dish sizes, or long coax cables. Thanks to its novel feed horn design and superior front-end components, this LNB provides higher conversion gain yet has a low noise figure and the best phase noise performance. The combination of innovative feed horn design for higher-spec components, excellent cross-polarization and isolation, and advanced filter design enables improved handling of interfering and spurious signals. This LNB provides a leap in overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to a single tuner set-top box, and being ready for Ultra High-Definition TV transmissions in 4K or 8K resolution. Designed to meet strict specifications and manufactured to the highest industry standards, this unique range of LNBs is an ideal solution for installations with challenging reception conditions.
Main Features: Novel feed horn design, Superior Phase Noise performance, DVB-S2X-compliant support for Ultra HD (4K and 8K) TV and cross-polarization Isolation Very Low Spurious Levels Superior Noise Figure with high Conversion Gain High 4G Immunity Ultimate Reliability Technical specifications
Low-band input frequency range10.7 GHz ~ 11.7 GHz
Low-band output frequency range950 MHz ~ 1950 MHz Low band
LO frequency: 9.75 GHz
High-band input frequency range: 11.7 GHz ~ 12.75 GHz
High-band output frequency range1100 ~ 2150 MHz
High-band LO frequency: 10.6 GHz
Noise figure: 0.2 dB typ. (0.7 dB max.)
LO temperature drift± 2.0 MHz max.
LO initial accuracy± 1.0 MHz max.
LO phase noise @ 1 kHz–70 dBc/Hz
LO phase noise @ 10 kHz–80 dBc/Hz
LO phase noise @ 100 kHz–90 dBc/Hz
LO phase noise @ 1 MHz–100 dBc/Hz
Conversion gain: 60 ~ 70 dB
Gain ripple (over 26 MHz band width): 1 dB max.
(peak-to-peak) Gain variation (over full band): 4 dB max.
(peak-to-peak) Image rejection: 50 dB min.
3th order intermodulation: ICP3+10 dBm min1 dB compression point (@ output)0 dBm min.
Cross polarization isolation: 22 dB min.
Control signal Ca (V): 10.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ± 4 kHz, 0.4V – 0.8V pp Output
VSWR 2.0: 1 max.
In-band spurious level: -65 dBm max.
Current consumption: 100 mA max.
(10 VDC ~ 20 VDC) Operating temperature:-30 °C ~ +60 °CO
Output impedance 75 Ω (F-type)
Output connector type: F-Type (female)
Weight 111.2
Logistical info Packaging dimensions (W x D x H) 12.4 cm x 7.9 cm x 5.8 cm Packaging weight: 0.254 Kg Quantity per Carton 100 Carton dimensions (W x D x H) 51.5 cm x 41.5 cm x 31 cm Carton weight 14.3 kg Quantity per pallet: 2400

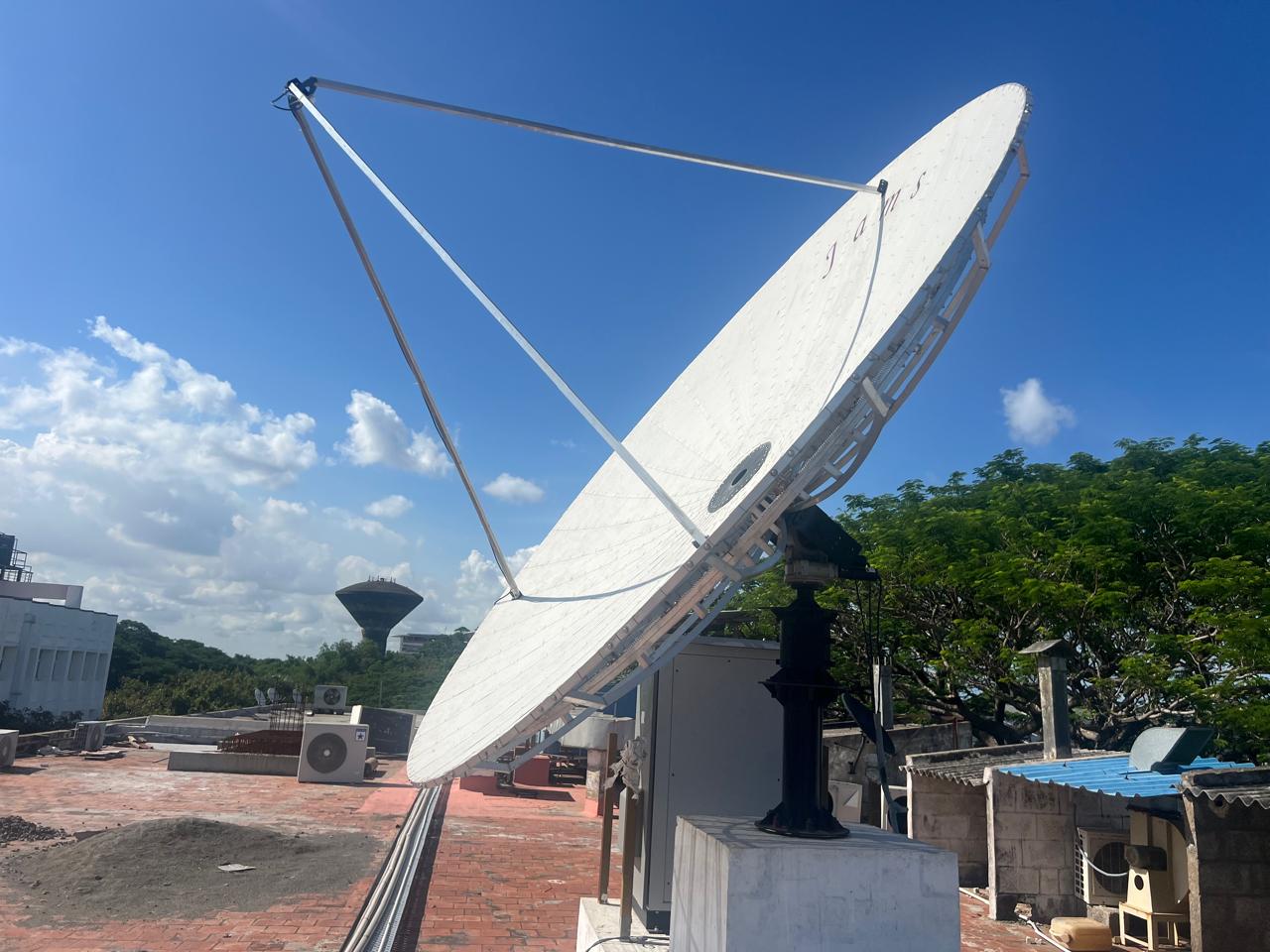

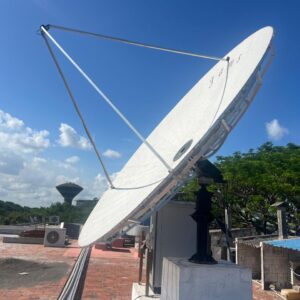

Specification:
| Antenna Size |
3.7 meters/12 ft. |
| Antenna Type |
Parabolic |
| Feed Type |
Prime Focus |
| F/D Ratio |
0.67 |
| Focal Length |
96.48-Inch |
| Double Ribs |
12 |
| Total Ribs |
36 |
| Reflector Material |
Aluminium Punch Sheet 28-Gauge |
| Antenna Structure Material |
Aluminium Square Pipe (Grade 6063 T6) |
| Nut-bolts Clumps |
Stainless Steel |
| Antenna MS Accessory Paint |
Customize (Powder Coating or Galvanized) |
| Base Pole mount Size |
Customize (OD 6.5-Inch-8.5-Inch) |
| Mount |
Azimuth over Elevation |
| Steerability |
AZ 360 Degree |
| Elevation |
0-85 Degrees |
| Polarization |
Linear & Circular |
| Operating Frequency |
10 GHz – 22 GHz |
| Pointing |
Manual |
| Pointing Accuracy |
Better Than +/-0.5 Deg. |
| Surface Accuracy (Typical RMS) |
Better Than 2 MM |
| Temperature Withstand App. |
-20 degrees to +50 degrees or Higher |
| Wind loads operational |
80 Kmph |
| Survival Wind Speed |
130 Kmph |
| Side Lobe Level |
As Per CCIR |
| Gain at 12 GHz: 50% efficiency |
50.24 dBi |
| Illumination angle for feed |
81.8 degrees |
| Space attenuation |
1.13 dB |
| Desired taper |
8.87 dB for 10 dB edge illumination |
| Approximate Weight. |
110 Kg |
A simple feed horn would have a diameter of 1.39 wavelengths for a 3 dB beamwidth of 47.61 degrees
Product details
Irdeto professional CA module
Professional application
Professional module works with:
multiplexer OT Streamline, Streamline streamer IPTV OS, OV 75M panel, the panel OH 88H, commercial satellite receivers CI.
Features:
Descramble up to 8 TV Channels using one module
MPEG DEMUX: Multi-channel SECTION and PID filter configurable through software
Embedded Linux operating system with proprietary intellectual property rights
ASIC chip with proprietary intellectual property right:
Embedded 32-bit CPU (ARM7TDMI)with advanced 0.18-micron technology
Compatibility /Compliance:
Plug and Play
DVB-CI standard EN50221
Smart Card interface ISO7816
Compatible with MPEG-2/MPEG-4
Compatible with the RoHS Directive 2002/95/EC and its subsequent amendments
Compatible with ISO7816 T=0/T=14 protocol, Class A
Compatible with ETR289
Customizations are available, suiting every budget and customer requirement.

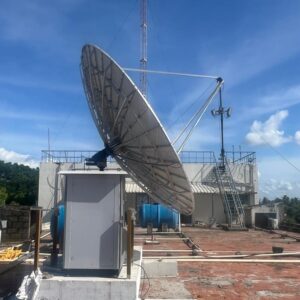

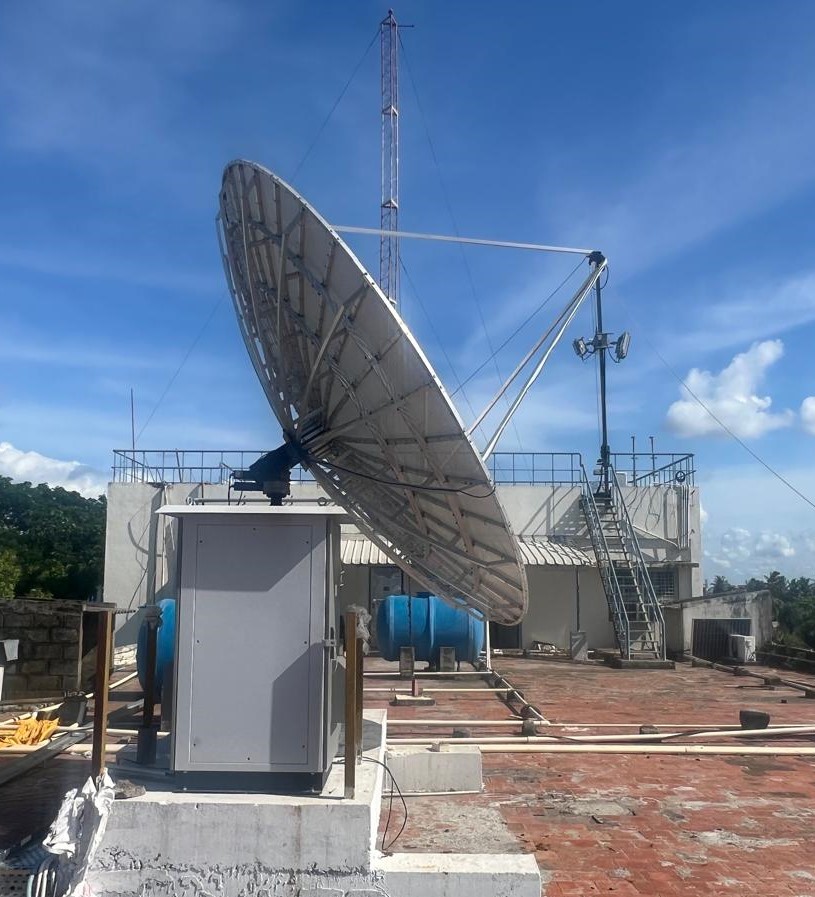

Specification:
| Antenna Size |
4.87 meters/16 ft. |
| Antenna Type |
Parabolic |
| Feed Type |
Prime Focus |
| F/D Ratio |
0.4 |
| Focal Length |
76.80-Inch |
| Double Ribs |
16 |
| Total Ribs |
48 |
| Reflector Material |
Aluminium Punch Sheet 28-Gauge |
| Antenna Structure Material |
Aluminium Square Pipe (Grade 6063 T6) |
| Nut-bolts Clumps |
Stainless Steel |
| Antenna MS Accessory Paint |
Customize (Powder Coating or Galvanized) |
| Base Pole mount Size |
Customize (OD 8.5-Inch-10.5-Inch) |
| Mount |
Azimuth over Elevation |
| Steerability |
AZ 360 Degree |
| Elevation |
0-85 Degrees |
| Polarization |
Linear & Circular |
| Operating Frequency |
10 GHz – 22 GHz |
| Pointing |
Manual/Motorized |
| Pointing Accuracy |
Better Than +/–0.5 Deg. |
| Surface Accuracy (Typical RMS) |
Better Than 2 MM |
| Temperature Withstand App. |
-20 degrees to +50 degrees or Higher |
| Wind loads operational |
80 Kmph |
| Survival Wind Speed |
130 Kmph |
| Side Lobe Level |
As Per CCIR |
| Gain at 50% efficiency |
43.20 dBi |
| Illumination angle for feed |
128 degrees |
| Space attenuation |
2.86 dB |
| Desired taper |
7.14 dB for 10 dB edge illumination |
| Approximate Weight. |
200 Kg |
A simple feed horn would have a diameter of 0.80 wavelengths for a 3 dB beamwidth of 83.01 degrees
