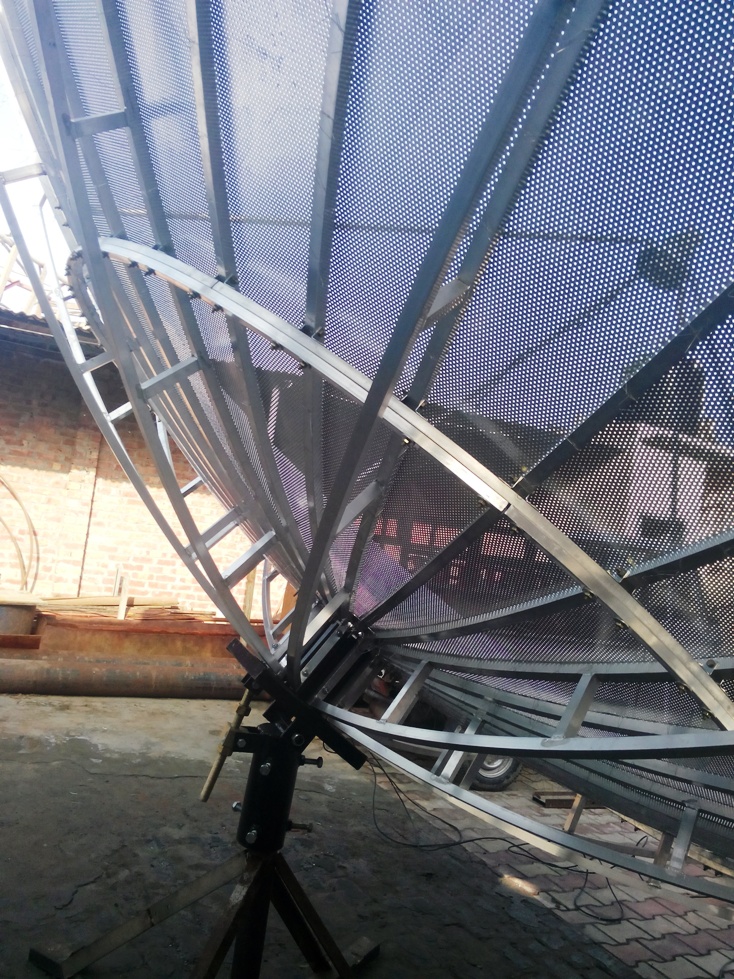

8 ft. C Band Dish Antenna
8ft. C-band Dish antenna Fully Aluminum
Specification:
| Antenna Size | 8 ft. |
| Antenna Type | Parabolic |
| Feed | Prime Focus |
| f/d Ratio | 0.42 |
| Focal Length | 40.00 Inch |
| Penal | Aluminum Punched sheet |
| Mount | AZ / EL |
| Stability | AZ 360 Degree EL to 90 Degrees |
| Total Ribs | 18/24 |
| Reflector Material | Aluminum Alloy |
| Wind load operational | 75 Kmph |
| Survival Wind Speed | 120 Kmph |
| Polarization | Linear & Circular |
| Pointing Accuracy | Better Than + / – 0.2 Deg. |
| Operating Frequency | 3.4GHz. – 13GHz. |
| Pointing | Manual |
| Gain | 38.31 dB at 4GHz |
| Approximate Weight. | 28 Kg. |
