Norsat 8520R DRO C-band Lnb

Norsat 8520R C-band Lnb

Specification:

Norsat 8520R C-band DRO LNB

Model: • Norsat 8520R
Input Frequency: • 3.4 – 4.2 GHz
Local Frequency: • 5.15 GHz
Local Stability: • ±500 kHz
Noise Temperature: • 20K
Output Frequency: • 950 – 1750 MHz
Phase Noise: • -65 dBc/Hz @ 1 kHz
• -80 dBc/Hz @ 10 kHz
• -95 dBc/Hz @ 100 kHz
Input VSWR: • 2.0:1
Output VSWR: • 2.2:1
Gain: • 64 dB
Output P1dB • 8 dBm
Power • 12 – 24V DC supplied through center conductor of IF cable
Current Drain • 130 mA
Input Waveguide • CPR 229G
Temperature Range • -40°C to +60°C
Dimensions • 7.1 x 4.0 x 2.8 Inches
Weight • 15 oz

Made in Korea

Download specification sheet
Norsat 8000r_lnb

6ft Ku/Ka-Band Dish Antenna

Specification

Gardiner Ti 5G-Filter-Lnb

Gardiner C-Band 5G Filter LNB

Description
The Gardiner C-Band TI and 5G Filter LNBF is a high-quality low-loss broadband filter that is a great way to stop any interference and protect your wireless connection. This filter can be used with a wireless router or a cordless phone. It has a high-density polyethylene coating that is both water-resistant and impact-resistant, making it durable and reliable.

Technical Specifications:
Input : 3.7-4.2 GHz
LO Freq. : 5.150 GHz
Stability : +/-250KHz
Gain : 62dB (Type)
Temp : 15K
DC Input : +13V to +24V

KA-Band Dual Port Feed Horn

KA-band-K-Band Dual Port Feed-horn

Image may vary in order

5G C-band extended Lnb

Extended C-Band 5G Filter LNB

Input Freq. (GHZ) – 4.5~4.8 GHz

Output Freq. (MHz) – 1150-1450 MHz

L.O. Freq. & Stability – 5.950 GHz+/- 500KHz

Noise Temp. (@+25C) – 30K Max

Input VSWR – 2.5:1 Max

Image Rejection – 45 dBc min.

Conversion Gain – 65dB typ. 55dB min. 70dB max.

Output VSWR – 2.5: 1 max.

Gain flatness – 4 dBp-p max.

Gain ripple – +/- 0.5 dB max.

1dB gain compression point – +5 dBm min.

Output impedance – 75ohms

Leakage {@input port) – -45dBm max.

Phase Noise – -65dBc/Hz @ 1KHz Offset

-80dBc/Hz @ 10KHz Offset
-95dBc/Hz @ 100KHz Offset
Power Supply – 012 to +24V DC

Required Current – 150 mA max.

Operating temperature – -40’C to +60’C

Storage temperature – -40’C to +80’C C33

Relative Humidity – 0% to 95% RH

Input waveguide flange – WR-229

If output connector – – F-Type female

Weight – 575g

Tested in :

Tested LNB on Bangabandhu1 Satellite for Extended C-Band Signals.

Quattro Lnb

Quattro Ku Band Lnb

Specification

Quattro Lnb ARLI OR OPTICUM

Input Frequency Range:
10.70 – 12.750 GHz

Output Frequency Range:
950-2150 MHz

Number of out 4 – VL, VH, HL, HH

LO Frequency 9.75/10.60 GHz
Feed Diameter – 40mm
Noise Figure – 0.1dB
Operation Temperature: -30C UP TO 70C

The Quattro LNB provides four outputs, each with a single band/polarization specific to that output.
The band/polarization available at each output is fixed at the time of manufacture. It is not possible to switch the band/polarization with a tone or switching voltage.
A Quattro LNB is normally used to feed a large distribution system. A single dish with a Quattro LNB fitted and a multi-switch (or IRS) is able to feed anything between 4 and 100 locations.
The multiswitch (or IRS) is able to provide any of the input signals at each output, depending on a tone/voltage sent up the cable by the receiver at each location. It’s as though the receiver at each location has it’s own dedicated LNB.
The outputs on a multi-switch (or IRS) are able to be controlled with a 22Hz tone and switching voltages in the same way that the outputs from normal universal LNB can be, i.e. to change band and polarisation.
The satellite receivers in each of the locations behave as though they are connected to their own dedicated dish and LNB, but in reality are just connected to a multi-switch (or IRS) output.
Quattro LNBs are considered to have a better life than quad LNBs as they are not being continually switched.

Ku-band Prime focus feed-Horn

KU Band Prime focus feed horn for C-Band Dish

Our High-Efficiency KU Band Feed Horn has been developed to provide superior performance by increasing the efficiency of C-Band dish reflector illumination. Our Adjustable scalar of feed horn an improvement of 15 to 20% gain. The adjustable Scalar works by increasing the gain on the dish antenna to illuminate the reflector surface more efficiently, concentrating more KU band signal into the LNB input.

Specification:-

Use any existing KU band Lnb Single Twin, Quad.
f/d ratio adjusts according to your C-band Dish antenna depth.
f/d ratio range .35 to .5

14ft Ku/Ka band Dish antenna

                                                           Specification:

A simple feed horn would have a diameter of 1.39 wavelengths for a 3 dB beamwidth of 47.61 degrees

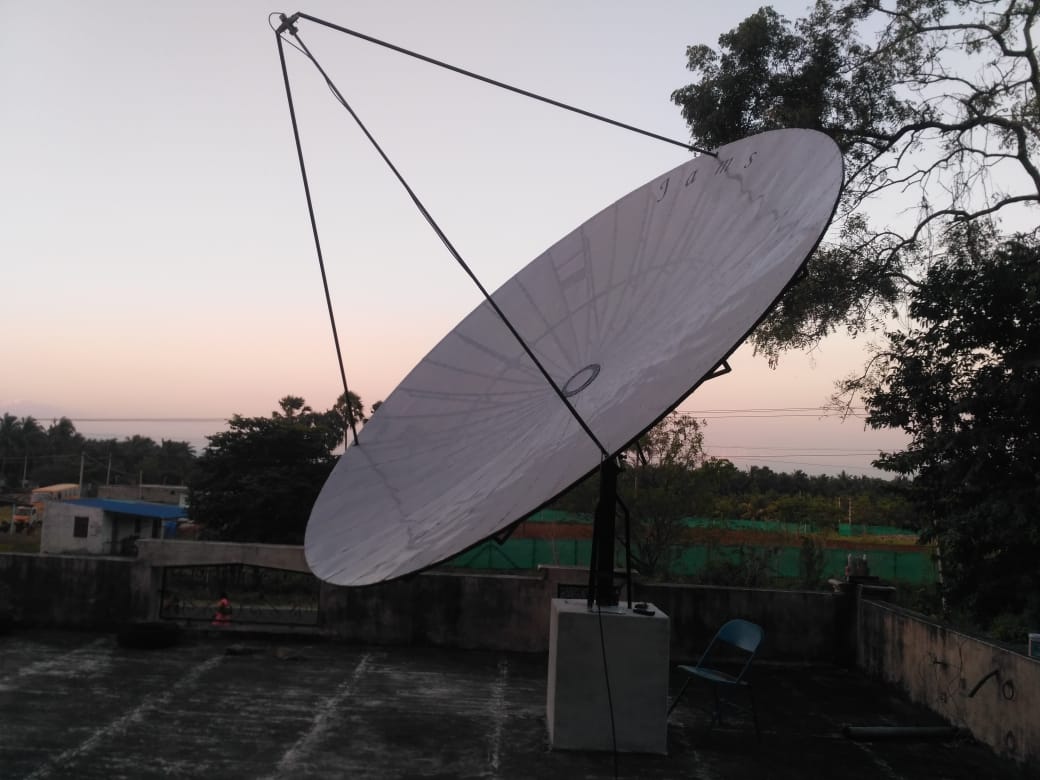

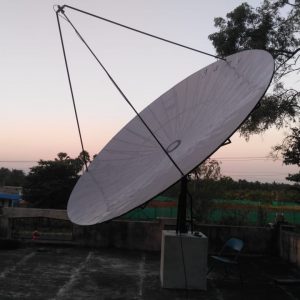

12 ft. C-Band Dish Antenna

3.65 meter

Customisations are available, suiting every budget and customer requirement.

                                                           Specification

A simple feed horn would have a diameter of 0.80 wavelengths for a 3 dB beamwidth of 83.01 degrees

Ku-Band Pll Lnb

Inverto Ultra 5928 PLL LNB High Gain is the world’s No. 1 Ku Band LNB now in India

Ultra Single High-gain Low Noise 40mm PLL Lnb IDLT-SNL412-Ultra-Open

Item: 5928

5928 is superior to Ultra Black or the previous model.
Inverto’s high-performance Ultra LNBs were specifically designed to address the need for superior reception under the edges of the satellite footprint skirt, small dish sizes, or long coax cables. Thanks to its novel feed horn design and superior front-end components, this LNB provides higher conversion gain yet has a low noise figure and the best phase noise performance. The combination of innovative feed horn design for higher-spec components, excellent cross-polarization and isolation, and advanced filter design enables improved handling of interfering and spurious signals. This LNB provides a leap in overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to a single tuner set-top box, and being ready for Ultra High-Definition TV transmissions in 4K or 8K resolution. Designed to meet strict specifications and manufactured to the highest industry standards, this unique range of LNBs is an ideal solution for installations with challenging reception conditions.

Main Features: Novel feed horn design, Superior Phase Noise performance, DVB-S2X-compliant support for Ultra HD (4K and 8K) TV and cross-polarization Isolation Very Low Spurious Levels Superior Noise Figure with high Conversion Gain High 4G Immunity Ultimate Reliability Technical specifications

Low-band input frequency range10.7 GHz ~ 11.7 GHz
Low-band output frequency range950 MHz ~ 1950 MHz Low band
LO frequency: 9.75 GHz
High-band input frequency range: 11.7 GHz ~ 12.75 GHz
High-band output frequency range1100 ~ 2150 MHz
High-band LO frequency: 10.6 GHz
Noise figure: 0.2 dB typ. (0.7 dB max.)
LO temperature drift± 2.0 MHz max.
LO initial accuracy± 1.0 MHz max.
LO phase noise @ 1 kHz–70 dBc/Hz
LO phase noise @ 10 kHz–80 dBc/Hz
LO phase noise @ 100 kHz–90 dBc/Hz
LO phase noise @ 1 MHz–100 dBc/Hz
Conversion gain: 60 ~ 70 dB
Gain ripple (over 26 MHz band width): 1 dB max.
(peak-to-peak) Gain variation (over full band): 4 dB max.
(peak-to-peak) Image rejection: 50 dB min.
3th order intermodulation: ICP3+10 dBm min1 dB compression point (@ output)0 dBm min.
Cross polarization isolation: 22 dB min.
Control signal Ca (V): 10.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ± 4 kHz, 0.4V – 0.8V pp Output
VSWR 2.0: 1 max.
In-band spurious level: -65 dBm max.
Current consumption: 100 mA max.
(10 VDC ~ 20 VDC) Operating temperature:-30 °C ~ +60 °CO
Output impedance 75 Ω (F-type)
Output connector type: F-Type (female)
Weight 111.2
Logistical info Packaging dimensions (W x D x H) 12.4 cm x 7.9 cm x 5.8 cm Packaging weight: 0.254 Kg Quantity per Carton 100 Carton dimensions (W x D x H) 51.5 cm x 41.5 cm x 31 cm Carton weight 14.3 kg Quantity per pallet: 2400
