KA-band/K-band Single-Port feed horn 17.20 to 22.22.20GHz.
Polarization mode: linear polarization, circular polarization optional
Irradiation angle (half angle): 32°
Voltage standing wave ratio (VSWR): 1.3
KA-band/K-band Single-Port feed horn for WR42.
KA band feed horn support Norsat, SMW, XMW Lnb
KA Band LNB K Band LNB
SMW Ka LNB 17.20-22.30 GHz Band (A Satcom Product)
Swedish Microwave Ka-Band Single Wideband PLL LNB
SMW Custom Ranges KA Band available Lnb 2 Band, 3 Band, 4 Band, 5 Band and 8 Band are available
• Auto switch between external or internal reference.
• Alarm, Monitoring & Control as option
• Mounting plate as option
• Low-loss Isolator as option
• Low power consumption
Product Overview
The SMW-Ka LNB 17.20-22.30 GHz Singleband from Swedish Microwave is a high-performance low-noise block (LNB) designed for reliable satellite reception within the Ka band spectrum under GEO, MEO, LEO, and HEO orbits. It covers 17.20 to 22.30 GHz. Engineered for both commercial and professional use, this LNB offers customizable options to suit various satellite communication needs, including advanced monitoring and control capabilities.
Built with robust features like auto-switching between external and internal references, high P1dB and IP3 values, and excellent phase noise performance compatible with DVB-S2X standards, the SMW-Ka LNB ensures stable and efficient signal reception even under challenging environmental conditions. Its compact, durable design makes it ideal for deployment in satellite systems that require high-quality Ka-band reception.
Key Features
• Auto-Switching Reference: Automatically switches between external and internal references, ensuring consistent performance.
• High Performance: Offers high P1dB and IP3 levels with low phase noise, meeting DVB-S2X standards for demanding applications.
• Customizable options: Available with various configurations, including custom LOs, extended IF ranges, and monitoring & control interfaces.
• Wide Temperature Range: Operates effectively in temperatures from -40°C to +80°C, making it suitable for diverse environments.
• Low Loss Isolator (Optional): Provides a maximum VSWR of 1.35:1, ensuring minimal signal reflection and optimal input matching.
Specifications
• Frequency Range: 17.20 – 22.30 GHz (varies by model and LO options)
• Gain: 60 dB typical, with customized gain available
• Phase Noise: Meets strict standards, with values of -112 dBc/Hz at >1 MHz
• IF Output: Standard ranges between 950-1950 MHz or custom up to 2150 MHz
• Connector Types: N-type, SMA, or F-type connectors are available, depending on configuration
• Power Supply: +11 to +26 V DC via output connector or optional separate SMA connector
• Environmental Protection: IP54 rating for dust and water resistance
Optional Accessories
• Monitoring & Control Interface: MODBUS RTU RS485 interface for remote operation
• Low Loss Isolator: Enhances VSWR for stable signal input
• Customized Configurations: Includes LO adjustments, extended IF range, and additional fixing points for flexible installation.
Additional Information
The SMW-Ka LNB 17.30-22.30 GHz Singleband is an ideal solution for satellite communication systems requiring high-quality Ka-band reception designed for within the Ka-Band spectrum for Geo, Meo, Leo, and Heo orbits. With options for customization, this LNB meets the demands of various commercial applications.
Ka LNB 17.20-22.30 GHz 3-8 Band Model examples Download
Prodelin Vsat 1.2M Tx/Rx Ku/Ka-Band offset Dish Antenna
Satcom product
Prodelin CPI SAT Series 1122 1.2M Tx/Rx Ku-Band Antenna is available to buy in increments of 1
TX/RX for linear polarization from 10.70 to 12.75 GHz on the receive side and 13.75 to 14.50 GHz on the transmit side.
Transmit Quality Precision SMC Reflector
Fine Elevation and Azimuth Adjustments
Extended Ku-Band RxTx Feed
Durable and Rugged Construction for Ease of Shipping and Handling
Heavy Gauge Pre-Galvanized Steel Az/El Mount
1122 1.2M Ku-band VSAT Antenna with Non-penetrating Mast
CPI SAT 1.2M Ku-Band VSAT Antenna Series 1122 is ideally suited for demanding commercial applications. The one-piece compression-molded reflector is precision manufactured for high-efficiency Ku-band operation. The Az/El mount is designed for easy installation on standard 2-7/8” OD or 3.0” OD installation mounts and features fine azimuth and elevation adjustments. The Az/El mount is constructed from heavy-gauge pre-galvanized steel for strength and corrosion resistance. An extended Ku-Band RxTx feed is standard with the Series 1122 Antenna.
CPI SAT products encompass the design, development, and manufacture of microwave and satellite communication VSAT antennas for domestic and international applications. CPI Satcom and Antenna Technologies specializes in providing high-quality, cost-effective antennas for both the two-way Very Small Aperture Terminal (VSAT) marketplace and receive-only applications. Additional products include unique, special-purpose antennas for such customers as NASA and defense contractors.
Electrical
Antenna Size: 1.2 m (48 in.)
Operating Frequency (GHz) Receive = 10.70-12.75 GHz
Transmit = 13.75-14.50 GHz
Midband Gain (+/- .3dBi)
Receive = 41.5 dBi nTransmit = 43.2 dB
Antenna Noise Temperature
20° Elevation = 45° K
30° Elevation = 40° K
Antenna Sidelobe Envelope
Per ITU-R S.580-6
Antenna Beamwidth
Receive = 1.5°
Polarization: Linear, Orthogonal,
Cross-Pol Isolation: 30 dB on Axis
Feed Specifications: Standard RxTx
Operating Frequency (GHz)
Receive = 10.70-12.75 GHz
Transmit = 13.75-14.50 GHz
Port-Port Isolation
Transmit = 85 dB Min
Receive = 30 dB Min
VSWR
Transmit = 1.3:1 Max
Receive = 1.5:1 Max
Insertion Loss
Transmit = 0.2 dB Max
Receive = 0.4 dB Max
Mechanical Performance
Reflector Material
Glass Fiber Reinforced Polyester SMC
Antenna Optics
Prime Focus, Offset, 0.6 F/D
Mount Type
Elevation over Azimuth
Elevation Adjustment Range
10° to 90° Continuous Fine Adjustment
Azimuth Adjustment Range
360° Continuous, +/- 10° Fine Adjustment
Mast Pipe Interface
2.5 SCH Pipe (2.88” OD) or 3.00” OD (73 or 76mm)
Max RF Equipment Weight
Tier 1 Feed Support = 8 lb. (3.6 kg)
Environmental Performance
Wind Loading
Operational = 45 mi/h (72 km/h)
Survival = 125 mi/h (200 km/h)
Temperature
Operational = -40° to 140° F (-40° to 60° C)
Survival = -50° to 160° F (-46° to 71° C)
Rain
Operational = ½ ”/h (13mm/h)
Survival = 2 “/h (51mm/h)
Ice
Survival = ½ inch (13 mm) Radial Ice
Atmospheric Conditions
Salt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas
Solar Radiation
360 BTU/h/ft² (1135 W/m2)
Download PDF for technical detail
Customizations are available, suiting every budget and customer requirement.

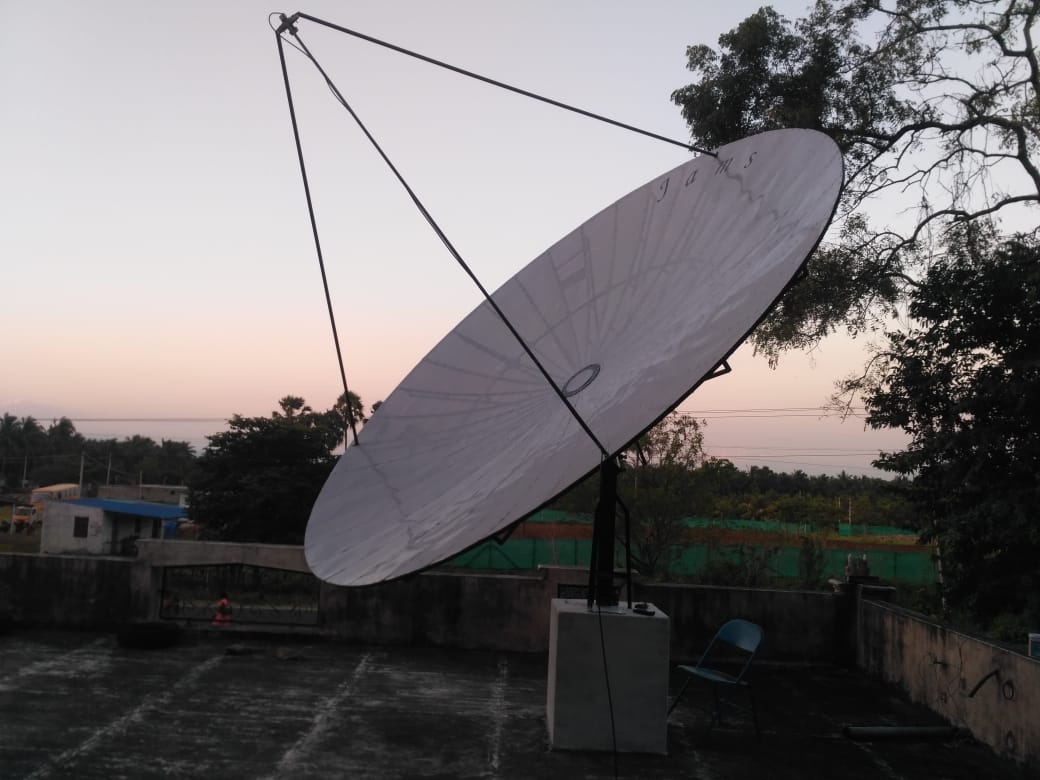

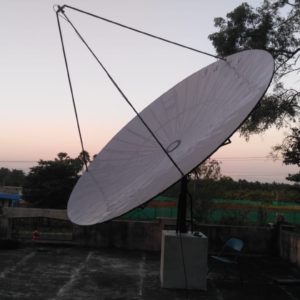

Specification:
| Antenna Size | 4.87 meters/16 ft. |
| Antenna Type | Parabolic |
| Feed Type | Prime Focus |
| F/D Ratio | 0.67 |
| Focal Length | 128.64-Inch |
| Double Ribs | 16 or 24 |
| Total Ribs | 48 |
| Reflector Material | Aluminium Punch Sheet 28-Gauge |
| Antenna Structure Material | Aluminium Square Pipe (Grade 6063 T6) |
| Nut-bolts Clumps | Stainless Steel |
| Antenna MS Accessory Paint | Customize (Powder Coating or Galvanized) |
| Base Pole mount Size | Customize (OD 8.5-Inch-10.5-Inch) |
| Mount | Azimuth over Elevation |
| Steerability | AZ 360 Degree |
| Elevation | 0-85 Degrees |
| Polarization | Linear & Circular |
| Operating Frequency | 10 GHz – 22 GHz |
| Pointing | Manual |
| Pointing Accuracy | Better Than +/-0.5 Deg. |
| Surface Accuracy (Typical RMS) | Better Than 2 MM |
| Temperature Withstand App. | -20 degrees to +50 degrees or Higher |
| Wind loads operational | 80 Kmph |
| Survival Wind Speed | 130 Kmph |
| Side Lobe Level | As Per CCIR |
| Gain at 12 GHz 50% efficiency | 52.74 dBi |
| Illumination angle for feed | 81.8 degrees |
| Space attenuation | 1.13 dB |
| Desired taper | 8.87 dB for 10 dB edge illumination |
| Approximate Weight. | 500 Kg |
A simple feed horn would have a diameter of 1.39 wavelengths for a 3 dB beamwidth of 47.61 degrees
DTA-2132 High-end satellite receiver for PCIe
Professional-grade satellite receiver card with high-quality RF measurements.
Ideal for satellite monitoring, modulator testing, and high-speed data distribution.
The card comes with full decoding and analysis of DVB Carrier ID (DVB-CID).
Features
FPGA-based DVB-S2/S2X demodulator (no CPU cycles consumed) with calibrated channel-power and MER measurement.
Supports VCM, ACM, MIS (multiple input streams), GS (generic stream) with access to baseband frames (BBFRAMEs) in L.3 format.
Hardware demodulator can be bypassed to obtain I/Q samples for recording or SDR.
Applications
Creating comprehensive satellite-network monitoring solutions for DVB-S2 and DVB-S2X.
Decoding and analysis of single or multiple DVB-CID signals, even when the satellite carrier interferes with other carriers.
Validation of DVB-S2/S2X/CID modulators.
High-speed satellite data distribution.
Block Diagram
The main path of the DTA-2132 consists of a wide-band L-band tuner, 12-bit I/Q analog-to-digital converter, DVB-S2/S2X demodulator and decoder, L.3 packetizer, FIFO, DMA controller, and PCIe interface. Constellation points are sampled after the demodulator, while LDPC error-rate and other statistics are gathered after the decoder.
A secondary I/Q path is used for multiple purposes: estimating the spectral characteristics of the input signal, DVB-CID demodulation, and sending I/Q samples to a user-space application for SDR, recording, or other purposes. A third path low-pass filters the I- and Q samples and estimates the signal power, corrected by calibration tables.
The DTA-2132 also contains an 18V/600mA LNB power inserter with over-current protection, as well as a DiSEqC-2.0 22-kHz LNB-control signal inserter. Finally, a temperature monitoring unit controls fan speed to keep the board cool.
Key Characteristics
RF frequency L band
950 to 2150MHz
Constellation Up to 256APSK/APSK-L
Symbol rate Up to 72MBd
Data rate Up to 425Mbps
Measurements RF level: -80 to -20dBm
MER: 3 to 35dB
Constellation diagram
Inputs and Outputs
RF in 75-Ω F female
PCI Express PCIe gen2 x4
Modulation Standards
Included with base product DVB-S2
DVB-S2X
DVB-CID
I/Q sample capturing
PC Support
OS
Windows 2k8/12/16
7, 8, 10
Linux ≥2.6.18, 3.x, 4.x
CPU Core i7-4xxx or above
Or AMD equivalent
Software
StreamXpert Our industry-standard transport-stream analyzer
DekTec SDKs Create your own application
Download PDF
DTA-2132 Leaflet
Dektec Products_PCIe_DTA-2132
Customizations are available, suiting every budget and customer requirement.
Specification:
| Antenna Size | 4.57 meters/15 ft. |
| Antenna Type | Parabolic |
| Feed Type | Prime Focus |
| F/D Ratio | 0.67 |
| Focal Length | 120.60-Inch |
| Double Ribs | 16 |
| Total Ribs | 48 |
| Reflector Material | Aluminium Punch Sheet 28-Gauge |
| Antenna Structure Material | Aluminium Square Pipe (Grade 6063 T6) |
| Nut-bolts Clumps | Stainless Steel |
| Antenna MS Accessory Paint | Customize (Powder Coating or Galvanized) |
| Base Pole mount Size | Customize (OD 8.5-Inch-10.5-Inch) |
| Mount | Azimuth over Elevation |
| Steerability | AZ 360 Degree |
| Elevation | 0-85 Degrees |
| Polarization | Linear & Circular |
| Operating Frequency | 10 GHz – 22 GHz |
| Pointing | Manual |
| Pointing Accuracy | Better Than +/-0.5 Deg. |
| Surface Accuracy (Typical RMS) | Better Than 2 MM |
| Temperature Withstand App. | -20 degrees to +50 degrees or Higher |
| Wind loads operational | 80 Kmph |
| Survival Wind Speed | 130 Kmph |
| Side Lobe Level | As Per CCIR |
| Gain at 12 GHz 50% efficiency | 52.18 dBi |
| Illumination angle for feed | 81.8 degrees |
| Space attenuation | 1.13 dB |
| Desired taper | 8.87 dB for 10 dB edge illumination |
| Approximate Weight. | 280 Kg |
Gardiner C-Band Lnb
17K Gardiner c-Band Lnb
Gardiner 17K C-Band with Single-Polarity-High-Quality-LNB. It will receive an uninterrupted signal from frequency 3.4 GHz to 4.2 GHz. Most recommended product from the group of special 3.4 GHz to 4.2 GHz.
Specification:
Input Frequency: 3.4 to 4.2 GHz
L.O.-Frequency: 5150MHz (±500 MHz)
Output Frequency: 950MHz to 1750MHz
L.O.-Leakage Input Port: 45dBm
L.O. Stability: ±1.5MHz (-40 centigrade to +70 centigrade)
Noise Figure: 17°K typConversion
Gain: 65dB typ
Gain Flatness: ±1 dBm (max)
Specification:
| Antenna Size | 3 meters/10 ft. |
| Antenna Type | Parabolic |
| Feed Type | Prime Focus |
| F/D Ratio | 0.4 |
| Focal Length | 48-Inch |
| Double Ribs | 12 |
| Total Ribs | 24 |
| Reflector Material | Aluminium Punch Sheet 28-Gauge |
| Antenna Structure Material | Aluminium Square Pipe (Grade 6063 T6) |
| Nut-bolts Clumps | Stainless Steel |
| Antenna MS Accessory Paint | Customize (Powder Coating or Galvanized) |
| Base Pole mount Size | Customize (OD 3-Inch-4-Inch) |
| Mount | Azimuth over Elevation |
| Steerability | AZ 360 Degree |
| Elevation | 0-85 Degrees |
| Polarization | Linear & Circular |
| Operating Frequency | 3.4 GHz – 12.7 GHz |
| Pointing | Manual |
| Pointing Accuracy | Better Than +/–0.5 Deg. |
| Surface Accuracy (Typical RMS) | Better Than 2 MM |
| Temperature Withstand App. | -20 degrees to +50 degrees or Higher |
| Wind loads operational | 80 Kmph |
| Survival Wind Speed | 130 Kmph |
| Side Lobe Level | As Per CCIR |
| Gain at 50% efficiency | 39.12 dBi |
| Illumination angle for feed | 128.0 degrees |
| Space attenuation | 2.86 dB |
| Desired taper | 7.14 dB for 10 dB edge illumination |
| Approximate Weight. | 50 Kg |
Specification
| Antenna Size | 2.13 meters/7 ft. |
| Antenna Type | Parabolic |
| Feed Type | Prime Focus |
| F/D Ratio | 0.67 |
| Focal Length | 56.28-Inch |
| Double Ribs | 6 |
| Total Ribs | 18 |
| Reflector Material | Aluminium Punch Sheet 28-Gauge |
| Antenna Structure Material | Aluminium Square Pipe (Grade 6063 T6) |
| Nut-bolts Clumps | Stainless Steel |
| Antenna MS Accessory Paint | Customize (Powder Coating or Galvanized) |
| Base Pole mount Size | Customize (OD 2-Inch-3-Inch) |
| Mount | Azimuth over Elevation |
| Steerability | AZ 360 Degree |
| Elevation | 0-85 Degrees |
| Polarization | Linear & Circular |
| Operating Frequency | 10 GHz – 22 GHz |
| Pointing | Manual |
| Pointing Accuracy | Better Than +/-0.5 Deg. |
| Surface Accuracy (Typical RMS) | Better Than 2 MM |
| Temperature Withstand App. | -20 degrees to +50 degrees or Higher |
| Wind loads operational | 80 Kmph |
| Survival Wind Speed | 130 Kmph |
| Side Lobe Level | As Per CCIR |
| Gain at 12 GHz: 50% efficiency | 45.56 dBi |
| Illumination angle for feed | 81.8 degrees |
| Space attenuation | 1.13 dB |
| Desired taper | 8.87 dB for 10 dB edge illumination |
| Approximate Weight. | 40 Kg |
info@jamsindia.comChoose Your Language
