Ku-band Travel Vision R7 – 80 cm (with storage bag ) Quick-deploy dish antenna
The Travel Vision R7-80 version has a single LNB and an 80 cm dish.
This allows you to receive the satellite and thus receive the channel package from one satellite position. The R7 is equipped with an 80 cm dish for optimum reception.
With the Travel Vision R7-80, you can enjoy yourself undisturbed; the advantages are numerous:
Fully automatic alignment at the touch of a button
No installation is required; the R7 is a mobile system and offers you optimum freedom and flexibility
Easy to connect with just one cable to your tuner
Dutch language control panel and extremely easy to use
Equipped with a handy, removable and patented anti-theft control module
You can park your caravan or camper under the trees, put the R7 where you want and then enjoy your favorite program
Easy to store and transport in optional carrying bag
The R7 is a fully automatic digital and mobile receiving system.
Product Description
Fully automatic mobile satellite reception system
With the Travel Vision R7 (Pro), you have the optimum ease of use: you have both a fully automatic satellite reception system and a mobile satellite reception system. No more manual alignment yourself, because with one push of a button, the Travel Vision R7 automatically finds the desired satellite.
The Travel Vision R7 (Pro) does not need to be built into or onto the roof of your caravan or camper; freestanding gives you the most flexibility. You can set up the R7 anywhere you want while your caravan or camper is in a shady area. For example, under the trees.
The Travel Vision R7 (Pro) can be set up and connected in no time with just one cable to your digital receiver. The satellite dish is easy to operate via the supplied control module. This is removable, so after aligning the satellite dish, you can remove it and store it. Furthermore, the Travel Vision R7 (Pro) is equipped with GPS, so the desired satellite is found very quickly. Regardless of where you are.
The difference between the R6 and the R7 is the built-in lithium battery in the control panel. The R7 (Pro) is equipped with a lithium battery, which allows you to align the antenna without other power supply connections. This takes an average of 3 minutes; fully charged, the battery lasts about 1 hour.
The Travel Vision R7 (Pro) consists of a single LNB and is available with a diameter of 65 Pro (with new PLL LNB and improved LNB arm construction, resulting in 30% (!) more efficiency) or 80 cm.
Features Travel Vision R7 (Pro) satellite dish
*Fully automatic alignment to your desired satellite at the touch of a button
*Equipped with a unique removable and patented anti-theft control module
*The latest technology in satellite recognition (DVB-S2)
*GPS positioning system for quickly finding the satellite
*Dutch-language illuminated control panel and extremely easy to use
*16 pre-programmed satellites in the preferred list
*Easy to connect with just one cable to your digital receiver
*A high-quality plastic dish with sufficient diameter and high efficiency ensures optimum reception, even in bad weather conditions
*No installation is required; the R7 is a mobile system and offers you optimum freedom and flexibility
*The R7 is compact and weighs only 7.5 kg.
*You can connect the R7 to any receiver
*Easy to store and transport in optional carrying bag
Technical specifications of the Travel Vision R7 (Pro) satellite dish
* Dish diameter 65 Pro or 80 cm
* 16 pre-programmed satellites
* Dutch language display
* Weight: 7.5 kg
* Charging adapter 230V AC to 24V DC – 36 Watt
* Battery life max. 60 minutes
* Battery charging time empty to full 120 minutes
* 15m coax cable: 75 Ohm double shielded
* 1 LNB output
* Adjustable skew adjustment
Prodelin CPI SAT Series 1122 1.2M Tx/Rx Ku-Band Antenna is available to buy in increments of 1
TX/RX for linear polarization from 10.70 to 12.75 GHz on the receive side and 13.75 to 14.50 GHz on the transmit side.
Transmit Quality Precision SMC Reflector
Fine Elevation and Azimuth Adjustments
Extended Ku-Band RxTx Feed
Durable and Rugged Construction for Ease of Shipping and Handling
Heavy Gauge Pre-Galvanized Steel Az/El Mount

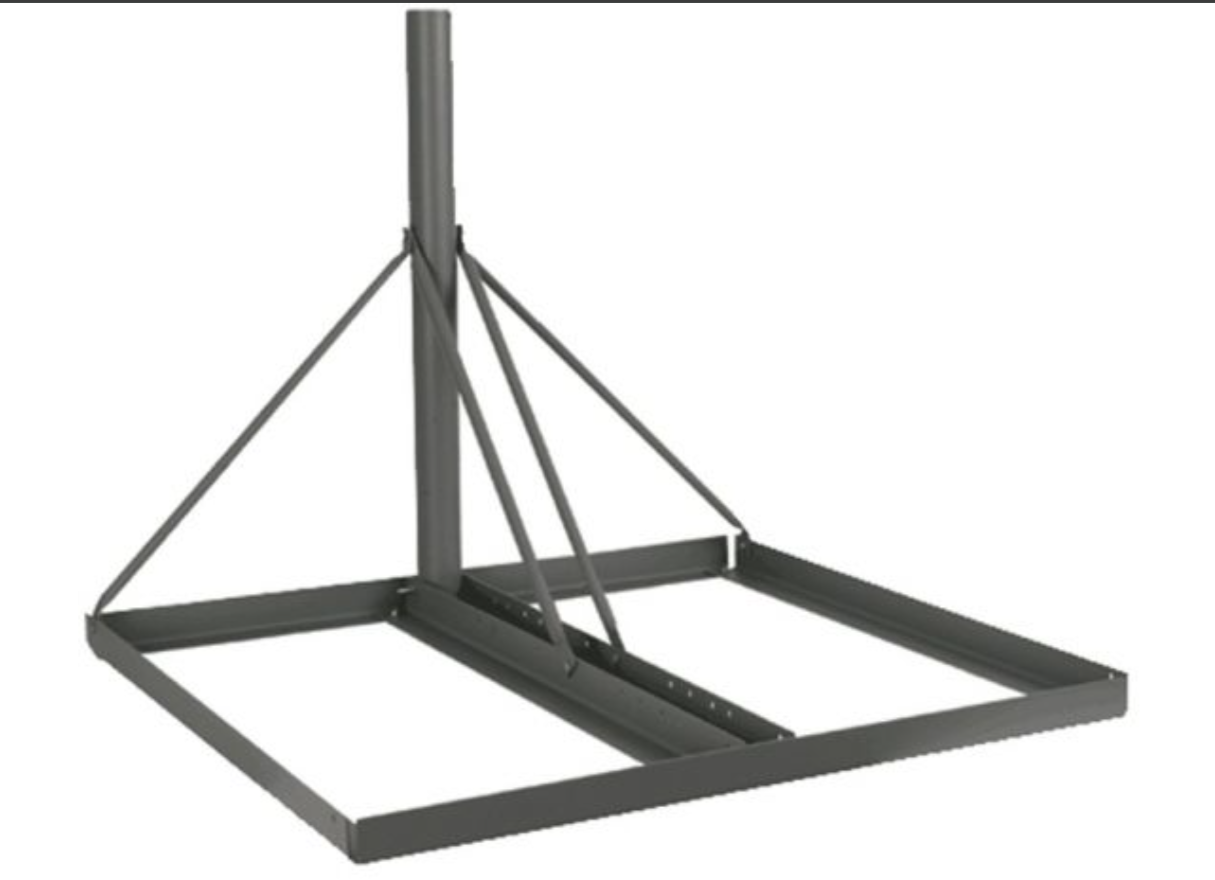

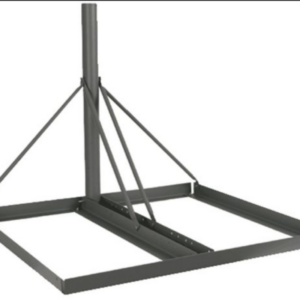

1122 1.2M Ku-band VSAT Antenna with Non-penetrating Mast
CPI SAT 1.2M Ku-Band VSAT Antenna Series 1122 is ideally suited for demanding commercial applications. The one-piece compression-molded reflector is precision manufactured for high-efficiency Ku-band operation. The Az/El mount is designed for easy installation on standard 2-7/8” OD or 3.0” OD installation mounts and features fine azimuth and elevation adjustments. The Az/El mount is constructed from heavy-gauge pre-galvanized steel for strength and corrosion resistance. An extended Ku-Band RxTx feed is standard with the Series 1122 Antenna.
CPI SAT products encompass the design, development, and manufacture of microwave and satellite communication VSAT antennas for domestic and international applications. CPI Satcom and Antenna Technologies specializes in providing high-quality, cost-effective antennas for both the two-way Very Small Aperture Terminal (VSAT) marketplace and receive-only applications. Additional products include unique, special-purpose antennas for such customers as NASA and defense contractors.
Electrical
Antenna Size: 1.2 m (48 in.)
Operating Frequency (GHz) Receive = 10.70-12.75 GHz
Transmit = 13.75-14.50 GHz
Midband Gain (+/- .3dBi)
Receive = 41.5 dBi nTransmit = 43.2 dB
Antenna Noise Temperature
20° Elevation = 45° K
30° Elevation = 40° K
Antenna Sidelobe Envelope
Per ITU-R S.580-6
Antenna Beamwidth
Receive = 1.5°
Polarization: Linear, Orthogonal,
Cross-Pol Isolation: 30 dB on Axis
Feed Specifications: Standard RxTx
Operating Frequency (GHz)
Receive = 10.70-12.75 GHz
Transmit = 13.75-14.50 GHz
Port-Port Isolation
Transmit = 85 dB Min
Receive = 30 dB Min
VSWR
Transmit = 1.3:1 Max
Receive = 1.5:1 Max
Insertion Loss
Transmit = 0.2 dB Max
Receive = 0.4 dB Max
Mechanical Performance
Reflector Material
Glass Fiber Reinforced Polyester SMC
Antenna Optics
Prime Focus, Offset, 0.6 F/D
Mount Type
Elevation over Azimuth
Elevation Adjustment Range
10° to 90° Continuous Fine Adjustment
Azimuth Adjustment Range
360° Continuous, +/- 10° Fine Adjustment
Mast Pipe Interface
2.5 SCH Pipe (2.88” OD) or 3.00” OD (73 or 76mm)
Max RF Equipment Weight
Tier 1 Feed Support = 8 lb. (3.6 kg)
Environmental Performance
Wind Loading
Operational = 45 mi/h (72 km/h)
Survival = 125 mi/h (200 km/h)
Temperature
Operational = -40° to 140° F (-40° to 60° C)
Survival = -50° to 160° F (-46° to 71° C)
Rain
Operational = ½ ”/h (13mm/h)
Survival = 2 “/h (51mm/h)
Ice
Survival = ½ inch (13 mm) Radial Ice
Atmospheric Conditions
Salt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas
