2 Port Gardiner C-band Feed-horn

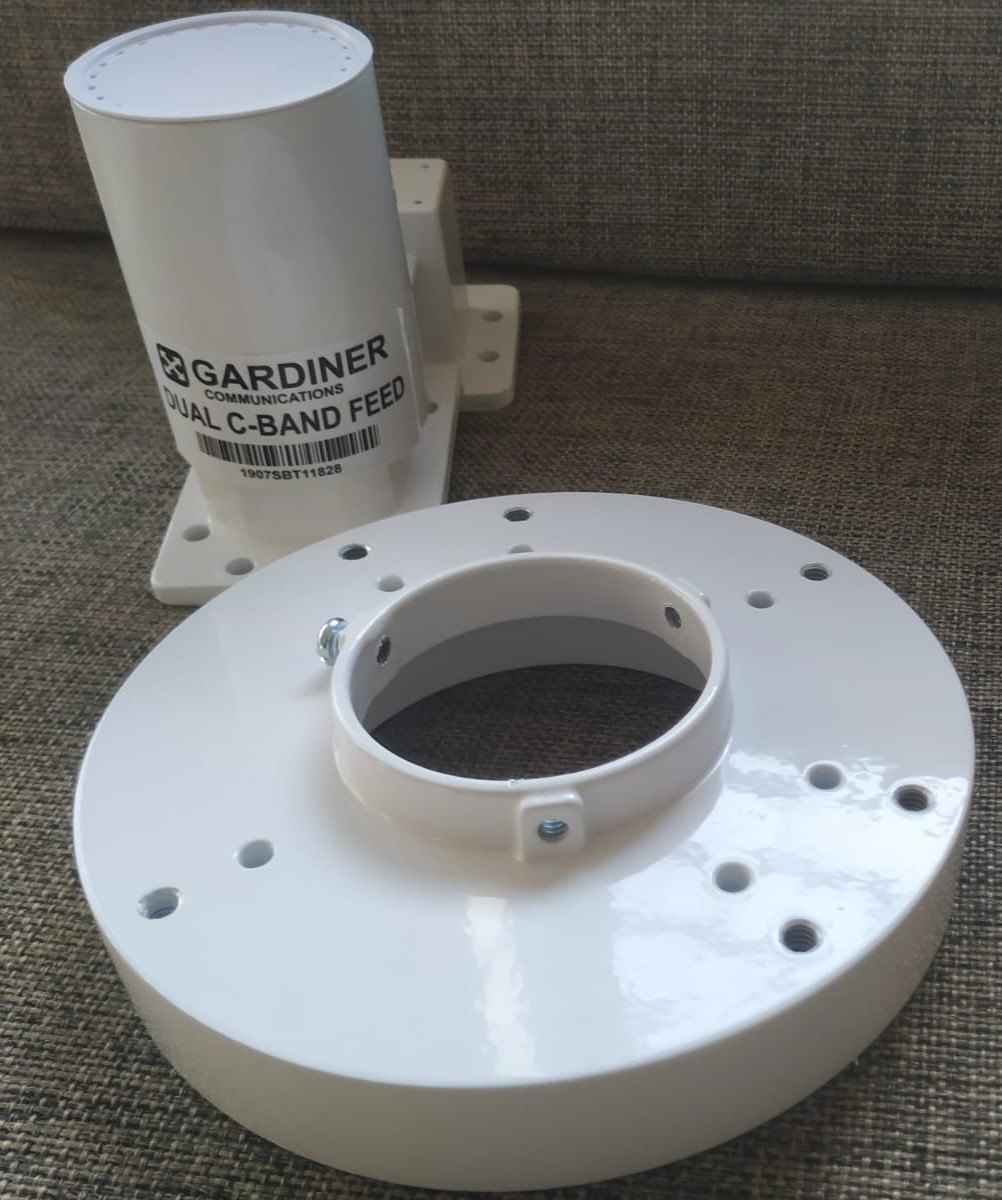

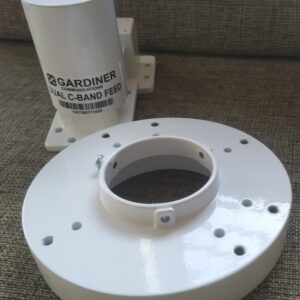

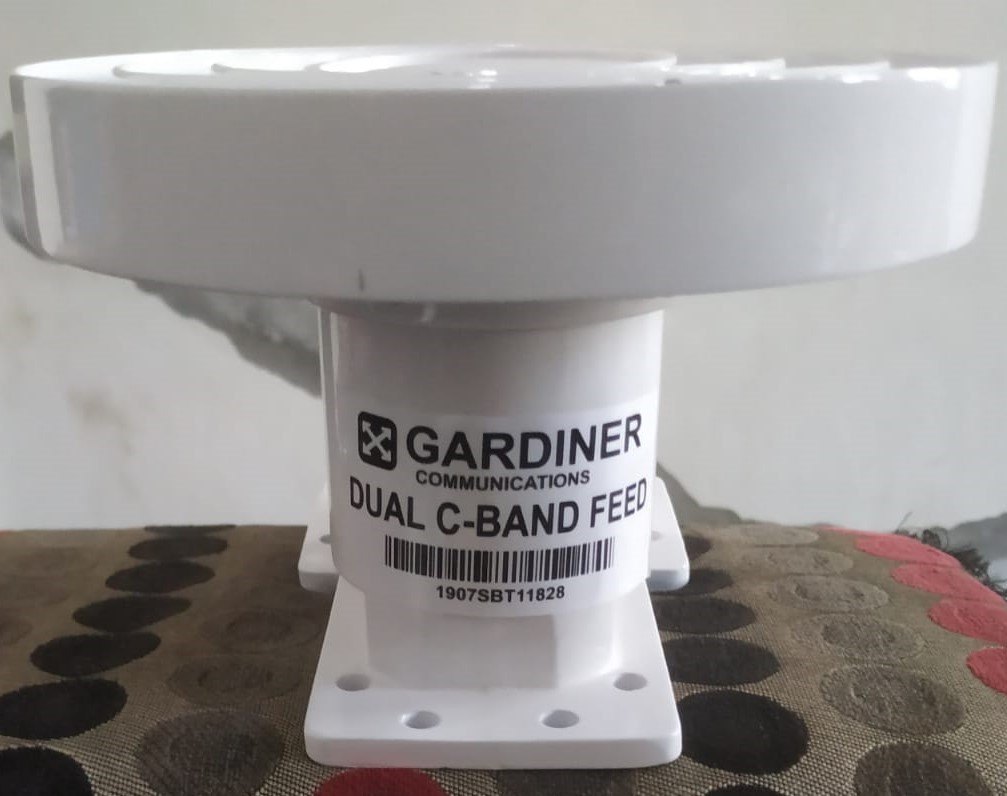

2-Port Gardiner Prime Focus C-band feed-horn

Specification
Parameter: Value
Input Frequency: 3.4-4.8 GHz
f/d Ratio: .335 to .425
VSWR: 1.44:1 (typ)
LNB Flanges: CPR-229
Manual Polarization: Linear
Feed Arm Configuration: Tri or Quad
Cross Polarisation Isolation: dB (typ)
Weight: 1.0 kg
Material: Aluminium

KA-Band feed-Horn 17.2-22.2GHz

KA-band/K-band Single-Port feed horn 17.20 to 22.22.20GHz.

Polarization mode: linear polarization, circular polarization optional
Irradiation angle (half angle): 32°
Voltage standing wave ratio (VSWR): 1.3

KA-band/K-band Single-Port feed horn for WR42.
KA band feed horn support Norsat, SMW, XMW Lnb

KA-Band Dual Port Feed Horn

KA-band-K-Band Dual Port Feed-horn

Image may vary in order
