Atron Ku-Dual Band LNB
Atron Ku-Full Band PLL LNB

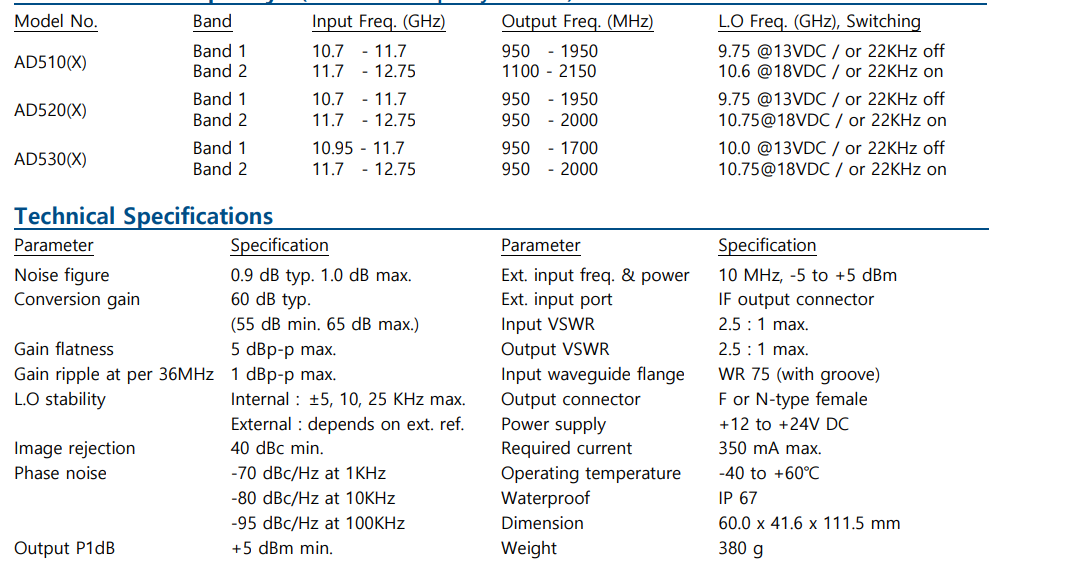

Specifications
AD500 series : Internal reference
AD500X series : External reference

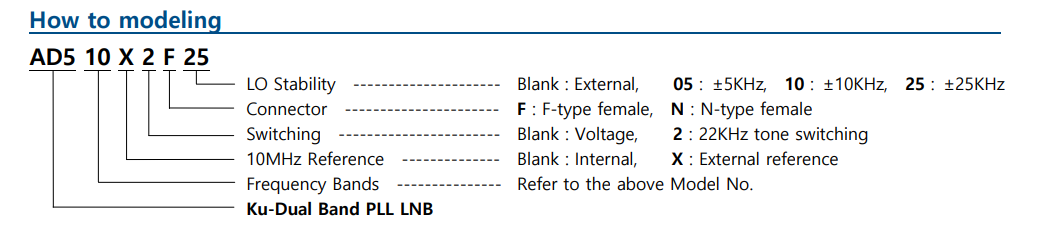

Model No. & Frequency (Customized frequency available)
AD510(X) 10.7 – 11.7 11.7 – 12.750
AD520(X) 10.7 – 11.7 11.7 – 12.750
AD530(X) 10.95 – 11.7 11.7 – 12.750
This high-stability AD500 Series C-band LNB has a CPR229 waveguide input and offers ±5 kHz, ±10 kHz, and ±25 kHz local oscillator stability.
The Atron AD500 Series Ku Dual Band PLL LNB provides a dual frequency band input of 10.7-11.7 GHz and 11.7-12.75 GHz. The Atron AD500 Series Ku Dual Band PLL LNB switches between frequency bands using voltage (13v or 18v).
KU band Lab have 1-year warranty
Specification sheet Download
