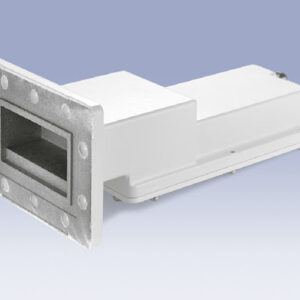

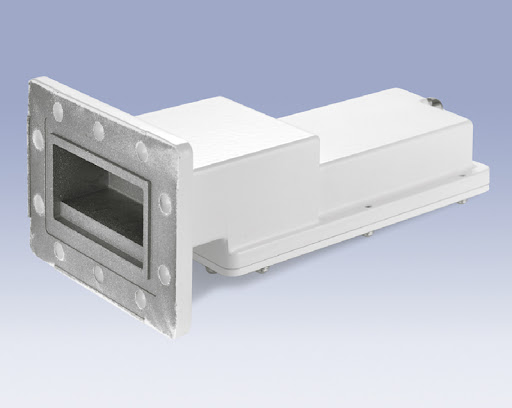

Atron C band PLL LNB

C-Band Lnb, Lnbs

PLL C-band LNB LO stability ±5/±10/±25 KHz
Customized Frequency available

Specifications

Input Frequency: 3.625-4.2 GHz
L.O. Stability: 5/±10/±25 KHz
Noise Temperature: 15K typ., 30 k maximum
Output Connector: F-Type Female
L.O. Frequency: 5.15 GHz
Conversion Gain: 63 dB typ
It is a preferred LNB for many C-band applications.

Applications
Low data rate digital video
A reference LNB for Rx test and service
SCPC digital or analog audio applications
Low speed SCPC data from 19.2 – 512 Kbps, or any higher data rate
1 Year Warranty
Atron LNBs are graded by stability and noise temperature to provide the perfect balance between required performance and cost.
Proven reliability for lower lifetime costs.
Excellent PLL LO stability to control receiver drift and employ lower bit rates or narrower space segments
Excellent Phase Noise to Lower Carrier-to-Noise margins, improving BER.
Atron LNB from Korea

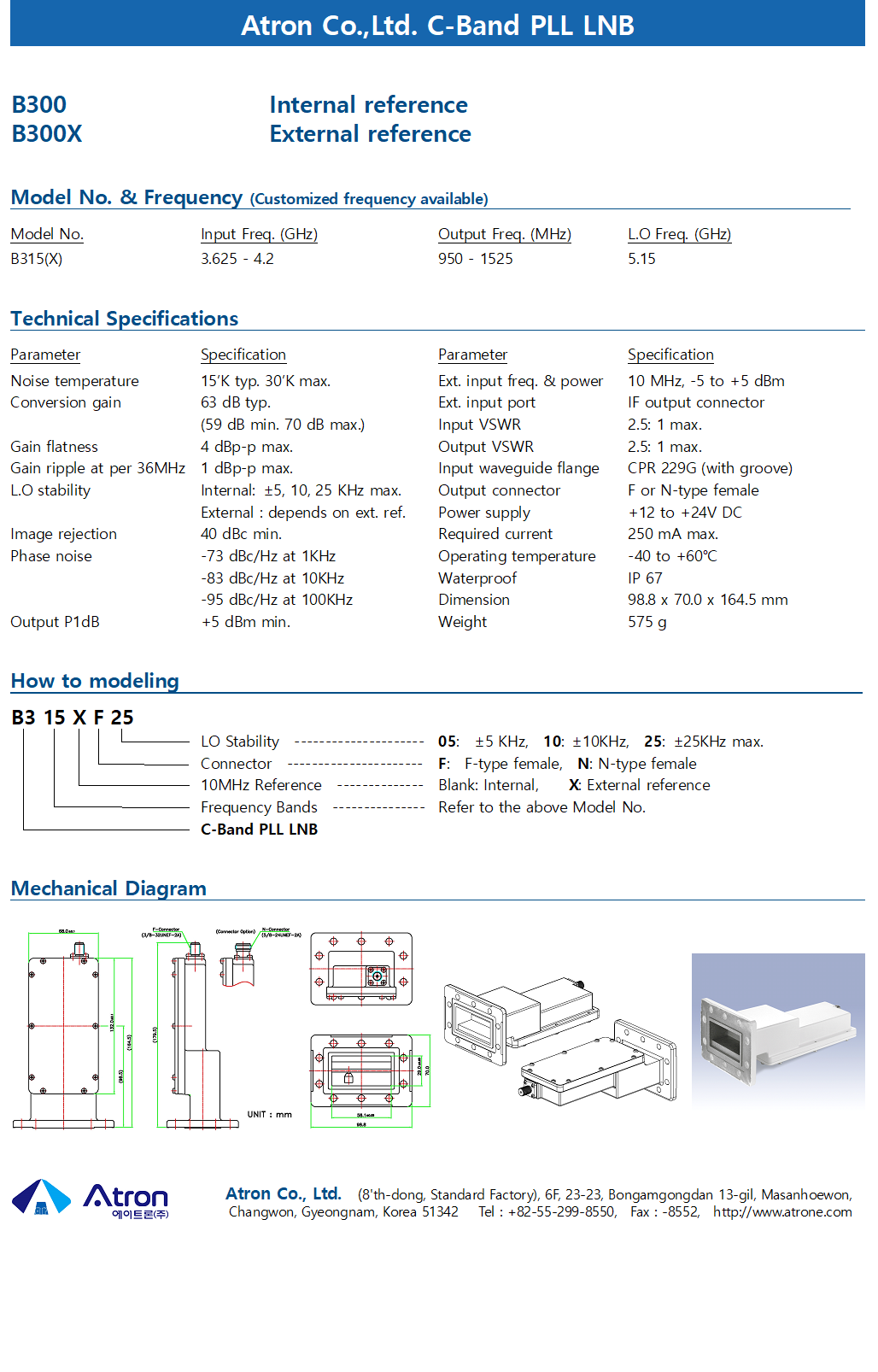

Download PDF
B315(X)
